Layered Dough Ball Making Machine Customizable Size High Capacity

Brand Name : SSS

Model Number : SSS-MXGB-650

Certification : CE ISO

Place of Origin : China

MOQ : 1 set

Price : USD30,000-50,000/Set

Supply Ability : 20 set per month

Delivery Time : 45 Days

Packaging Details : Wooden case

Machine Name : Mexican Tortilla Making Machine

Core Components : PLC, Engine, Motor, teflonn Belt

Warranty of Core Components : 1 Year

Machine Material : 304 Stainless Steel

Belt Material : Food Grade PU

Machine Color : Silver

Application Fields : Bakery; Food and Beverage Industry

Brand : SSS

Raw Material : Wheat or Corn floour

Marketing Type : Hot sale 2019

Machine name : paratha proccessing dough ball making machine

Contact Now

High Capacity Layered Dough Ball Making Machine Customizable Size Roujiamo Ball Producting Machine

Dough Roller Sheeting And Cutting Machine Customizable Size Shape Layered Dough Ball Making Machine

Factory Dough Roller Sheeting and Cutting Machine

Customizable Cutting Shape Layered Dough Ball Making Machine

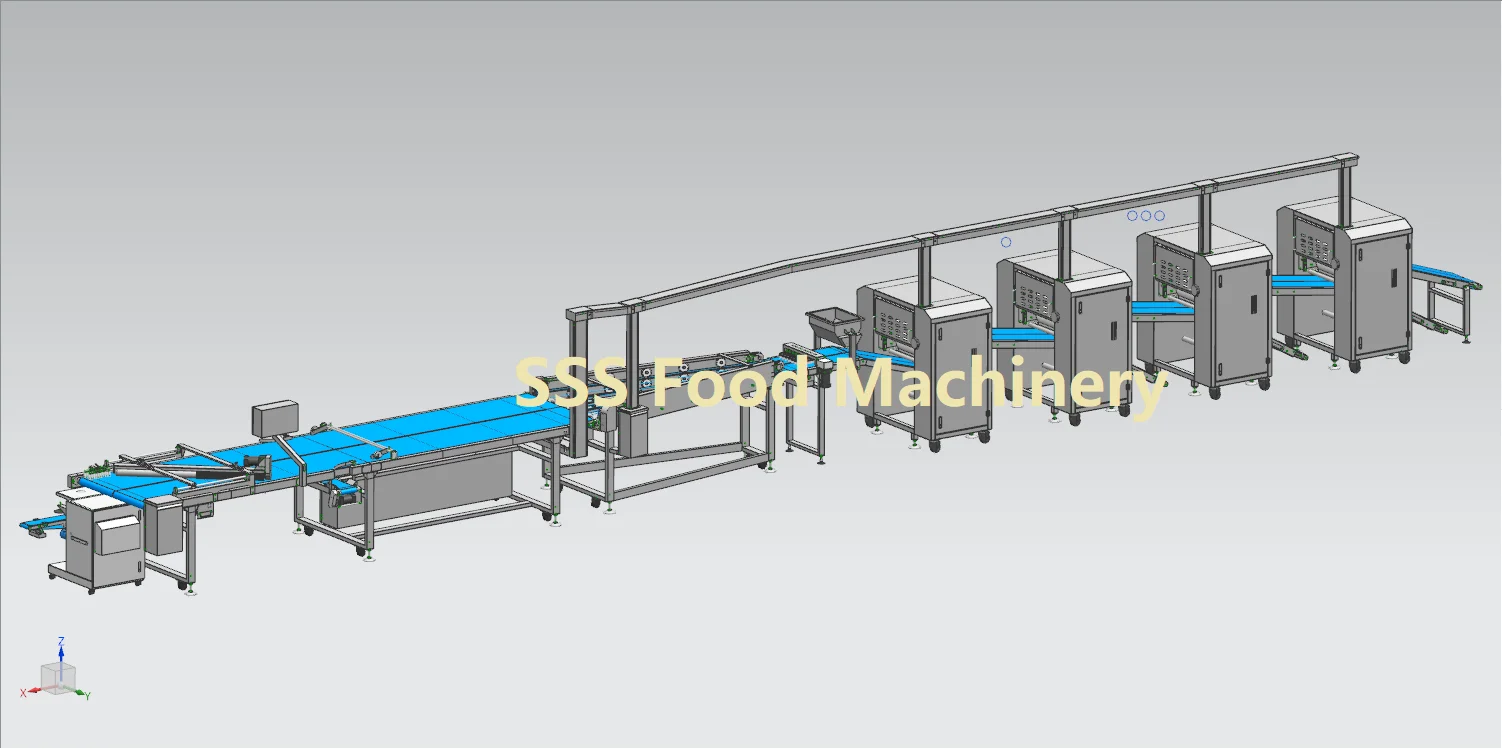

By feeding the mixed dough to start the automatic Paratha Processing line. It will automatically press and roll the dough, then stretch it into a thin skin after rolling, widening and stretching. After a series of processes such as brushing oil, sprinkling green onion
 and spices, it is formed and rolled into a spiral dough balls.
Can be equipped with Stamping machine, auto tray-arranging machine and paratha pressing film covering machine for pre-packaging products


Layered Dough Ball Making Machine Customizable Size High Capacity

* Automatic Frozen Plain Paratha Dough Balls Machine is designed to make various kind of food products such as Plain Paratha ,Roti Paratha, Stuffed Paratha ,Lacha Paratha ,Aloo Paratha,Flat Bread ,Chapati, Roujiamo Buns ect...
 Processing : Dough pressing - sheeting -oil ,scallion spraying-rolling -forming -freezing -baking
 * It is available for chopped beef ,barbecued pork meat and green onion , bean paste as stuffing
* Automatic stamping and fliming machine ,Place the dough balls between the top and bottom film, through the pneumatic pressing plates to press them into thin pastries, then cut the film for counting and stacking.
 * The machine is easy to assemble, clean and maintain. The automatic oil device can prolong the life of fixture service All parts contacted with food are made of food grade stainless steel.
 Advantages
The machine adopts PLC and touch screen memory function, and the original parts of the whole production line adopt international famous brands to ensure stable and reliable products. Easy operation, stable quality, infinitely adjustable within a certain range, automatic production process, compact structure, stable performance and easy maintenance.

Technical Parameters

Weight Range	50-200 g/piece
Capacity	2000-6000 pcs/Hour
Power Supply	30kw/380v/50hz (Customizable)
Size of Production Line	2700012001800
Weight of the Machine	Aprox. 6800kg
Air Pressure	0.8-1.0mpa

Finished Products

About Machine

Machine Equipment
No.	Equipment Name	Amount
1	Dough Inputor	1
2	Paratha Main Part	1
3	Dough Pressor	4
4	Dough Wider	1
5	Dough Sheet Climber	1
6	Section Cuttor	1
7	Rolling Equipment	1
8	Rolling Working-platform	1
9	Carburetor	2
10	Paratha Pressor&packing Equipment	1
11	Number Counter	1
Total		15

Top and bottom film covering and pressing Machine
Product Weight		60-150G/Piece
Producition Capacity		1500-2800 Pieces/Hour
Power		0.25kw/220v/50hz
Machine Outline Size		450012001500 mm
Machine Weight		600 kg /Set
Product Diameters		160~230MM
Pressure Range		0.8-1.0mpa

Automatic Tray-arranging machine
Product Weight		60-200G/Piece
Producition Capacity		1500-7000 Pieces/Hour
Power		1.0kw/220v/50hz
Machine Outline Size		140012001600 mm
Machine Weight		450kg /Set
Product Diameters		160~230MM
Pressure Range		0.8-1.0mpa

Packaging & Shipment

FAQ

1) Are you a manufacturer / factory? Yes, we are a real factory / manufacturer with more than years of experience.
 2) Where are you? Can we visit your factory in China? Welcome to visit us. Our factory is located in Anhui City, China (Mainland).
 3) What is the Warranty and Installation Procedure of the Machine?
 We offer instruction manual in English, installation and video management. Overseas technician in stock. Full 1 year machine warranty, forever maintenance and support.
 4) What documents do you offer for customs clearance?
 As a rule, we offer an original Commercial invoice, sales contract, packing list, if you have any
 need. Some special documents are needed, you can discuss with us before ordering, we will try our best to service
----------------------------------------------------------------------
